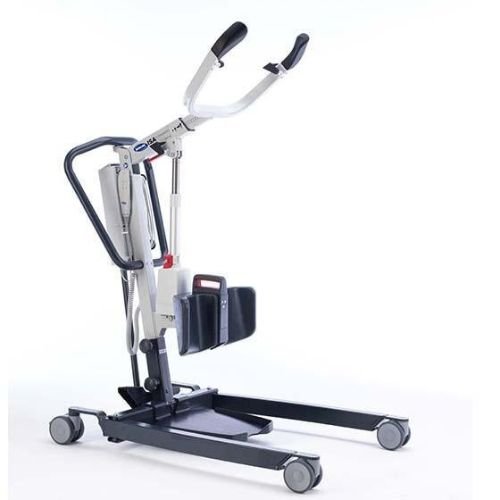

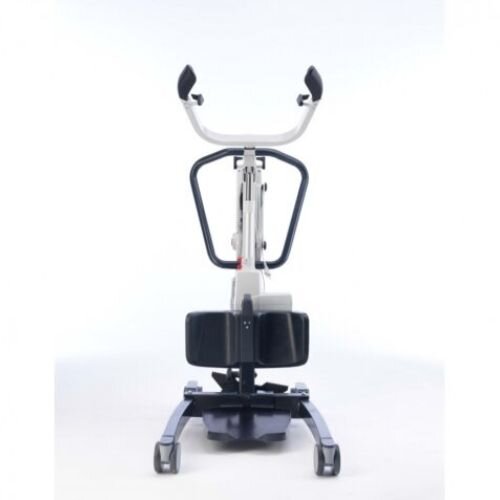

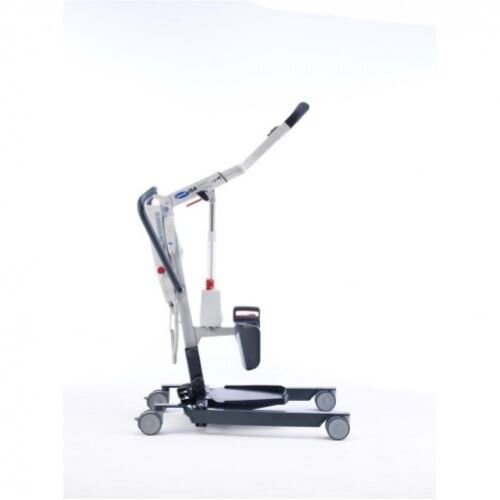

Invacare Stand Assist ISA Compact
The Invacare Isa Compact is specially designed to offer the best lifting experience for both the client and carer. As a caregiver, usability is a fundamental element, which is why the new ISA has a reduced, curved overall base dimension and reduced product weight. It is perfect for an environment with limited space and comes with a max safe working load of 140kg and user height of 1400-1800mm.
Key Features
- Footplate: It features a footplate with various models to accommodate a variety of users with a foot size up to a 48 EU.
- Design improvements for carers Push bar: Shape and dimension based on the average elbow height and shoulder width of a typical carer, to ensure smoothness and ease when manoeuvring.
- Foot pedal: It has a non-slippery and large surface for any shoe type with a hand lever for easy manual leg spread.
- Ergonomic hand grips: The unique design perfectly fits the natural shape of the hand for a safe grip.
- Extendable lifting arm: The TelescoLift can be adjusted to nine different length positions for different client heights, offering maximum flexibility.
- Curved legs: Ergonomic shape for easy manoeuvering around chairs and toilet bases.
- Part of our disability aids range.
Technical Data
SAFE WORKING LOAD: 140 kg
BASE LENGTH: 925 mm
BASE WIDTH: 535 mm
INSIDE WIDTH LEGS CLOSED: 405 mm
INSIDE WIDTH LEGS OPENED: 735 mm
TURNING DIAMETER: 1060 mm
TOTAL WEIGHT: 43 kg
GROUND CLEARANCE: 35 mm
HEIGHT OF LEGS: 115 mm
LIFTING SPEED: 46 mm/s
WORKING ABILITY (LIFTS PER CHARGE): 82
FRAME COLOUR: Light Grey: mast, boom and lifting arm RAL: 7035 Anthracite Grey: base, legs and push bar RAL: 7016
